STRUCTURAL ANALYSIS OF Al AND Fe3O4 BASED THIN FILMS USING POSITRON ANNIHILATION TECHNIQUES
Kh.N. Ahmadova1,2
   download pdf

ABSTRACT

Thin films of Al (60 and 100 nm), Fe3O4 (120 nm), and their combined composite layer (220 nm) were synthesized using epitaxial deposition techniques. Microstructural features and vacancy-type defects in the prepared samples were examined by Doppler Broadening Positron Annihilation Spectroscopy. Analysis of the measured spectra provided the energy dependence of the S and W parameters. The results indicate that the predominant defects in Al and Fe3O4 films are linear in nature, whereas the data for the Al–Fe3O4 composite suggest the presence of vacancy-type centers.

Keywords: Positron annihilation, Doppler broadening, thin layers.
DOI:10.70784/azip.2.2025411

Received: 18.11..2025
Internet publishing: 25.11.2025    AJP Fizika A 2025 04 az p.11-14

AUTHORS & AFFILIATIONS

1. Institute of Physics Ministry of Science and Education Republic of Azerbaijan, 131 H.Javid ave, Baku, AZ-1073, Azerbaijan
2. Azerbaijan State Oil and Industry University, Baku, AZ 1010, Azerbaijan
E-mail: khuramanahmadova85@gmail.com

Graphics and Images

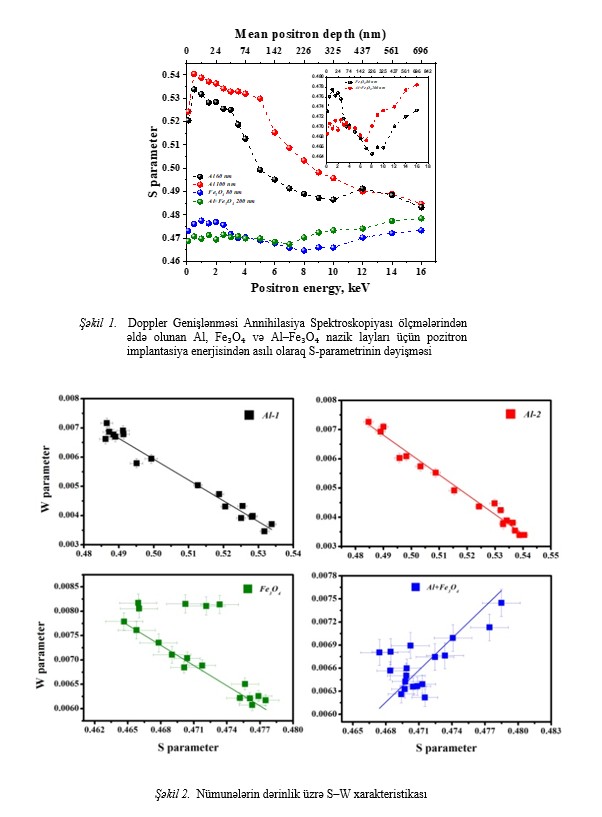

     Fig.1-2

 [1]   E.Sh. Alekperov, S.G. Jabarov, T.A. Darzieva, G.B. Ibragimov, A.M. Nazarov, S.S. Farzaliev. Effect of an electric field on the crystallization behavior of amorphous TlIn1–xSnxSe2 films, Inorganic Materials, 59, 1,P.8-11, 2023. https://doi.org/10.1134/S0020168523010028
[2]   S. Khayyamifar, G. Sadowski, J. Hektor, D. Music. Amorphous TiNiSn thin films for mechanical flexibility in thermoelectric applications, Thin Solid Films, 807, P.140534, 2024. https://doi.org/10.1016/j.tsf.2024.140534
[3]   T.A. Darziyeva, E.Sh. Alekperov, S.H. Jabarov, M.N. Mirzayev. Influence of heavy ions on the magnetic properties of Fe3O4 nanoparticles, Integrated Ferroelectrics, 232, 1,P.127-133, 2023. https://doi.org/10.1080/10584587.2023.2173447
[4]   I. Leonov, A.N. Yaresko, V.N. Antonov, M.A.Korotin, V.I. Anisimov. Charge and orbital order in Fe3O4, Physical Review Letters 93, P.146404, 2004. https://doi.org/10.1103/PhysRevLett.93.146404
[5]   A. García-Valenzuela, M. Butterling, M.O. Liedke, E. Hirschmann, T.T. Trinh, A.G.Attallah. Positron annihilation analysis of nanopores and growth mechanism of oblique angle evaporated TiO2 and SiO2 thin films and multilayers, Microporous and Mesoporous Materials, 295, P.109968, 2020. https://doi.org/10.1016/j.micromeso.2019.109968
[6]   S.F. Samadov, N.V.M. Trung, A.A. Donkov, A.A. Sidorin, O.S. Orlov, E. Demir, O.A.Samedov, S.H. Jabarov, N.V. Tiep, E.P.Popov, M.N. Mirzayev. Investigating the impact of gamma irradiation and temperature on vacancy formation and recombination in ZrB2 ceramics using positron annihilation spectroscopy, Journal of Nuclear Materials, 599, P.155242, 2024. https://doi.org/10.1016/j.jnucmat.2024.155
[7]   W. Sato, R. Ishizaki, H. Shimizu, M.Sakaguchi, S. Tsutsui. Microscopic probing of the doping effects of In ions in Fe3O4, Journal of Applied Physics, 132, P.083904, 2022.https://doi.org/10.1063/5.0091339
[8]   Kh.N. Ahmadova, S.H. Jabarov. Obtaining of Al nanolayers and crystal structur, International Journal on Technical and Physical Problems of Engineering, 52, P.116-120, 2022.
[9]   P. Horodek, M. Kulik. Application of positron beam for the long range effect studies in proton implanted iron, Nuclear Instruments and Methods in Physics Research Section B: Beam Interactions with Materials and Atoms, 443, P.84-89, 2019. https://doi.org/10.1016/j.nimb.2019.02.003
[10]  A. van Veen, H. Schut, M. Clement, J.M.M. de Nijs, A. Kruseman, M.R. Ijpma. VEPFIT applied to depth profiling problems, Applied Surface Science, 85, P.216-224, 1995.https://doi.org/10.1016/0169-4332(94)00334-3
[11]  L.L. Nguyen, T.D. Xuan, C.V. Chung, L.P. Nguyen, N.T. Phuong, P.T. Hue, N.T.N. Hue, N.V. Tiep, N.V.M. Trung, A. Drozdziel, M. Turek, K. Pyszniak, H.A.T. Kiet, H.-D. Nguyen, T.-P.T. Pham, N.N. Anh, N.C. Chien, T.T.H. Nguyen, N.Q. Hung, L.A. Tuyen. Solid-state crystallization, oxygen-vacancy rich mesopores and stable triad-silanol nests in ZSM-5 catalyst induced by electron-beam irradiation and calcination, Journal of Science: Advanced Materials and Devices, 9, P.100646, 2024.https://doi.org/10.1016/j.jsamd.2023.100646
[12]  S. Awad, A. Al-rashdi, E.E. Abdel-hady. Free volume properties of the zinc oxide nanoparticles / waterborne polyurethane coating system studied by a slow positron beam, Journal of Composite Materials, 53, 13,P.1765-1775, 2018.https://doi.org/10.1177/0021998318809526
[13]  M. Clement, J.M.M. de Nijs, P. Balk, H. Schut, A. van Veen. Analysis of positron beam data by the combined use of the shape and wing parameters, Journal of Applied Physics, 79, 12, P.9029-9036, 1996.https://doi.org/10.1063/1.362635
[14]  T. Torsti, M. Heiskanen, M.J. Puska, R.M. Nieminen. MIKA: Multigrid-based program package for electronic structure calculations, International Journal of Quantum Chemistry, 91, 2,P.171-176, 2003.https://doi.org/10.1002/qua.10397
